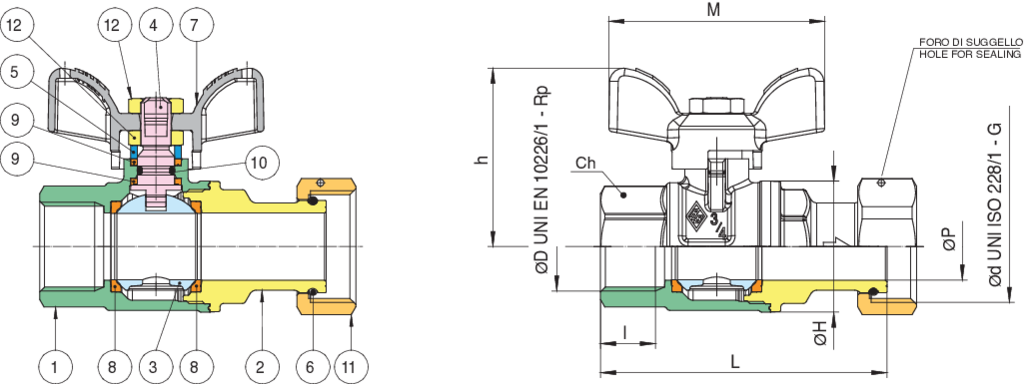

Technical specifications
Position Part name Material N.° pieces
1 BODY BRASS CW617N UNI EN 12420 1
2 END CONNECTION BRASS CW617N UNI EN 12420 1
3 BALL BRASS CW617N UNI EN 12420 1
4 STEM BRASS CW614N UNI EN 12164 1
5 PACKING GLAND BRASS CW614N UNI EN 12164 1
6 CIRCLIP STEEL 1
7 T-HANDLE ALUMINIUM EN-AC 46100 1
8 BALL SEAT PTFE 2
9 STEM SEAL/THRUST WASHER PTFE 2
10 O-RING NBR 1
11 NUT BRASS CW617N UNI EN 12420 1
12 NUT STEEL CL 04 2
ØD x Ød BOX MASTER BOX CODE ØP I Ch ØH L h M Kv PN Kg
1/2" x 3/4" 10 40 2029260000 15 15 27 33 75 41 50 16,3 64 0,29
3/4" x 1" 10 20 2029580000 20 16,3 32 39 85 53 64 29,5 64 0,44
